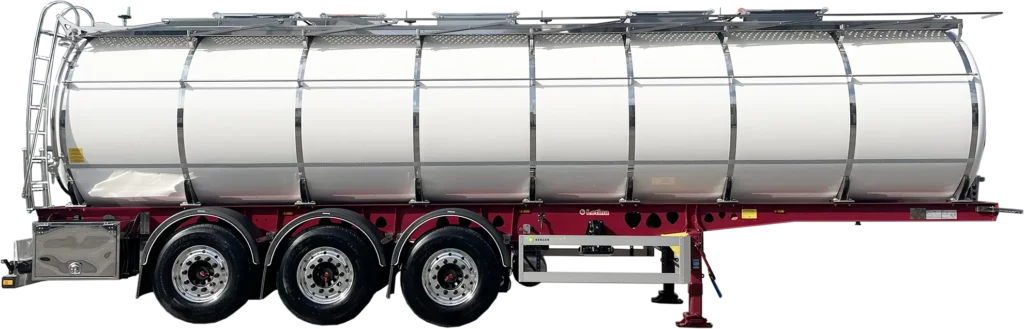

Tanker Semi-Trailers

Engineered for Liquid Transport Excellence

Letina offers a comprehensive range of high-quality semi-trailer tanks engineered for the safe, efficient, and reliable transport of diverse liquid goods. Our tanks are made with high-quality materials and precision engineering to meet the specific requirements of various industries.

Compartments

Up to 4 compartments

Volume

27.000 - 32.000 L

Pressure

Pressurized up to 2.0 BAR

Tanker for non food liquids

For the reliable transport of non-hazardous liquids, our tanks are built to last. Constructed with durable and compliant materials, they guarantee product integrity throughout storage and distribution.

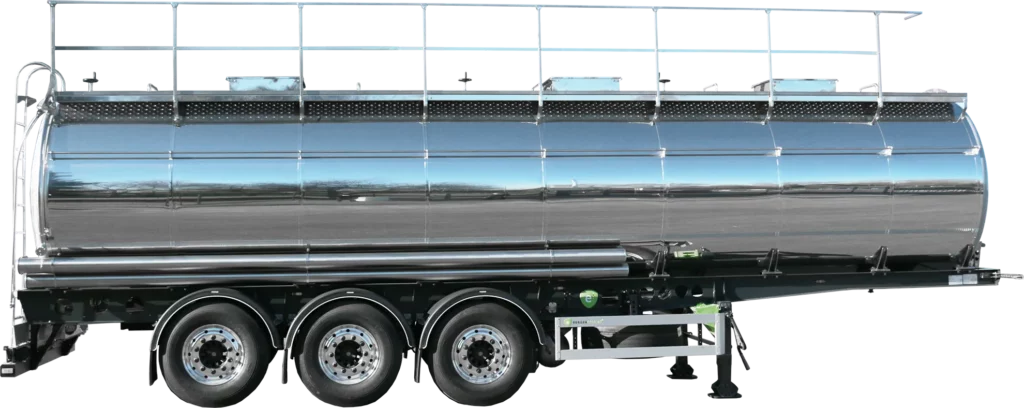

ATP tanker for food liquids

Our ATP-regulated tanks ensure the safe and hygienic transport of temperature-sensitive food products, designed to maintain temperature according to the International ATP Agreement and offering the option of heating systems for specific cargo needs.

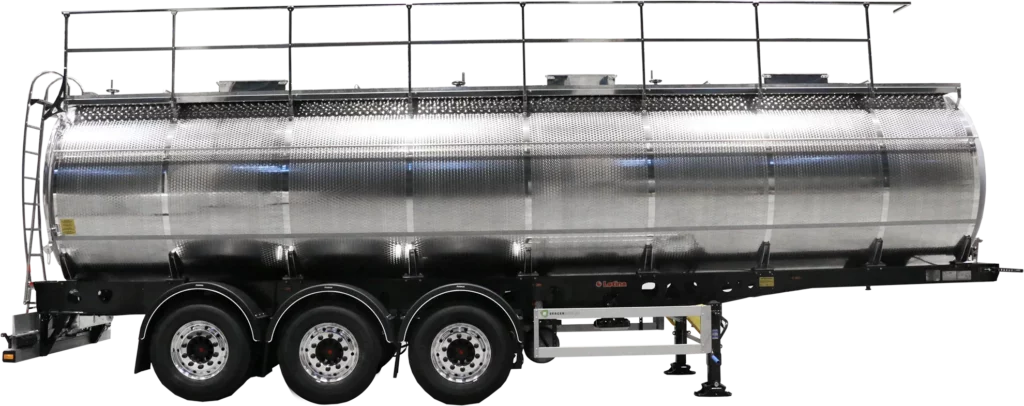

Pressurized tanker

Letina pressure tankers are designed for safe and efficient transport of liquid products under pressure. They feature an integrated pressure system for faster unloading, built-in heating options (water and steam) to maintain proper temperature, and ATP-certified insulation to ensure product quality during transport.

Technical Specifications

Tank:

Material: Tank (shell) made of AISI 304 stainless steel, internally polished. Tank support rings also made of stainless steel.
Capacities: Available in various tank capacities.
Compartments: Configurable from a single compartment up to 5 separate compartments.
Insulation: High-density polyurethane insulation, compliant with ATP (Accord Transport Perissable) regulations.

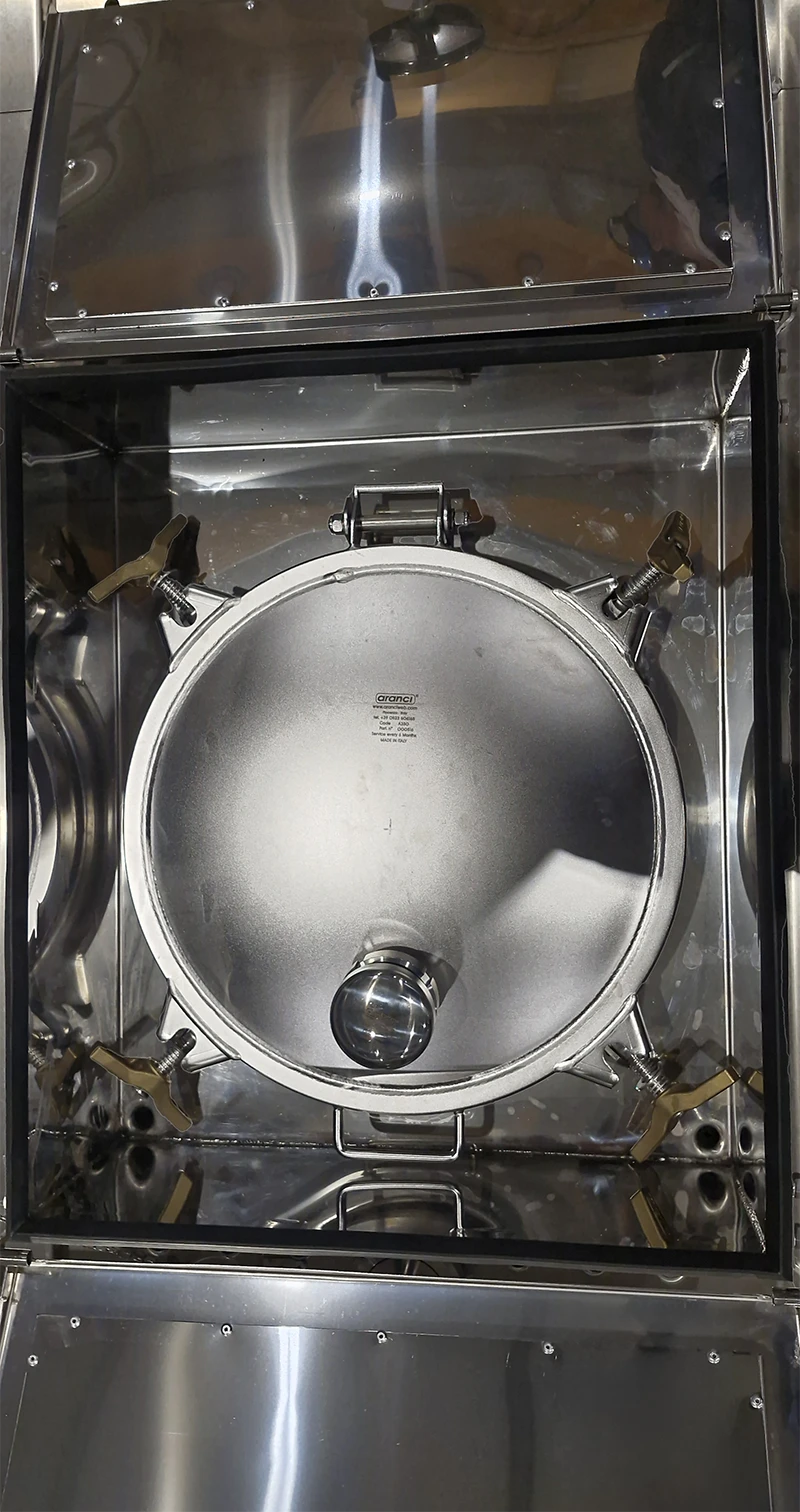

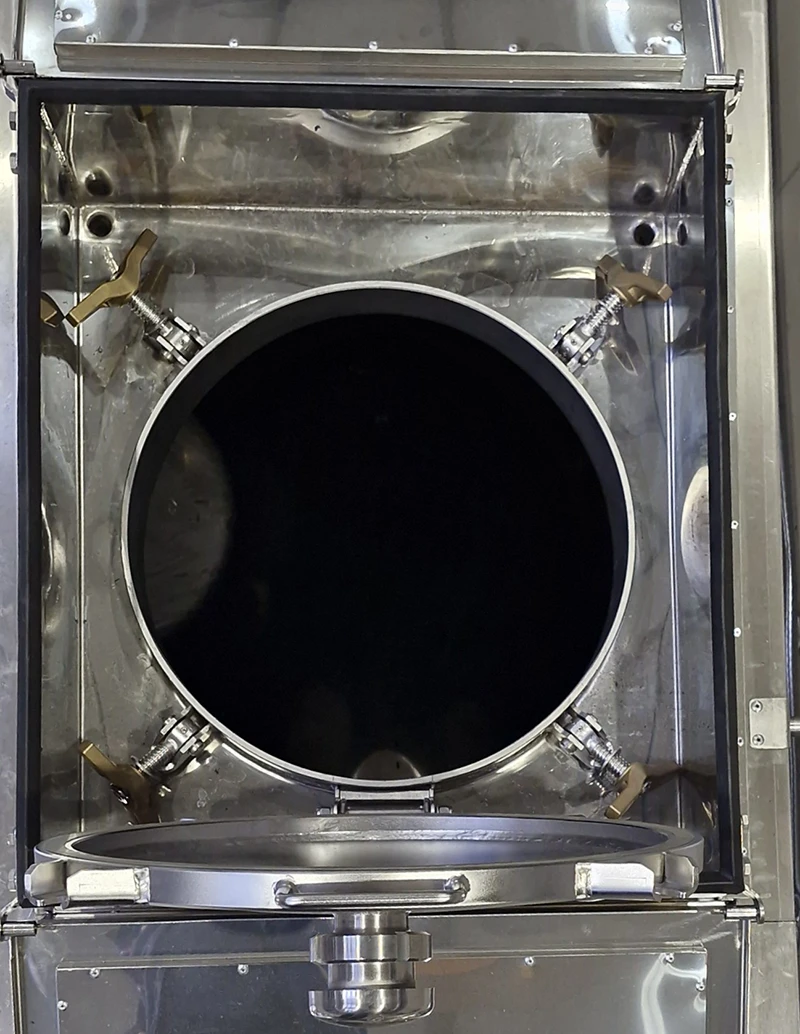

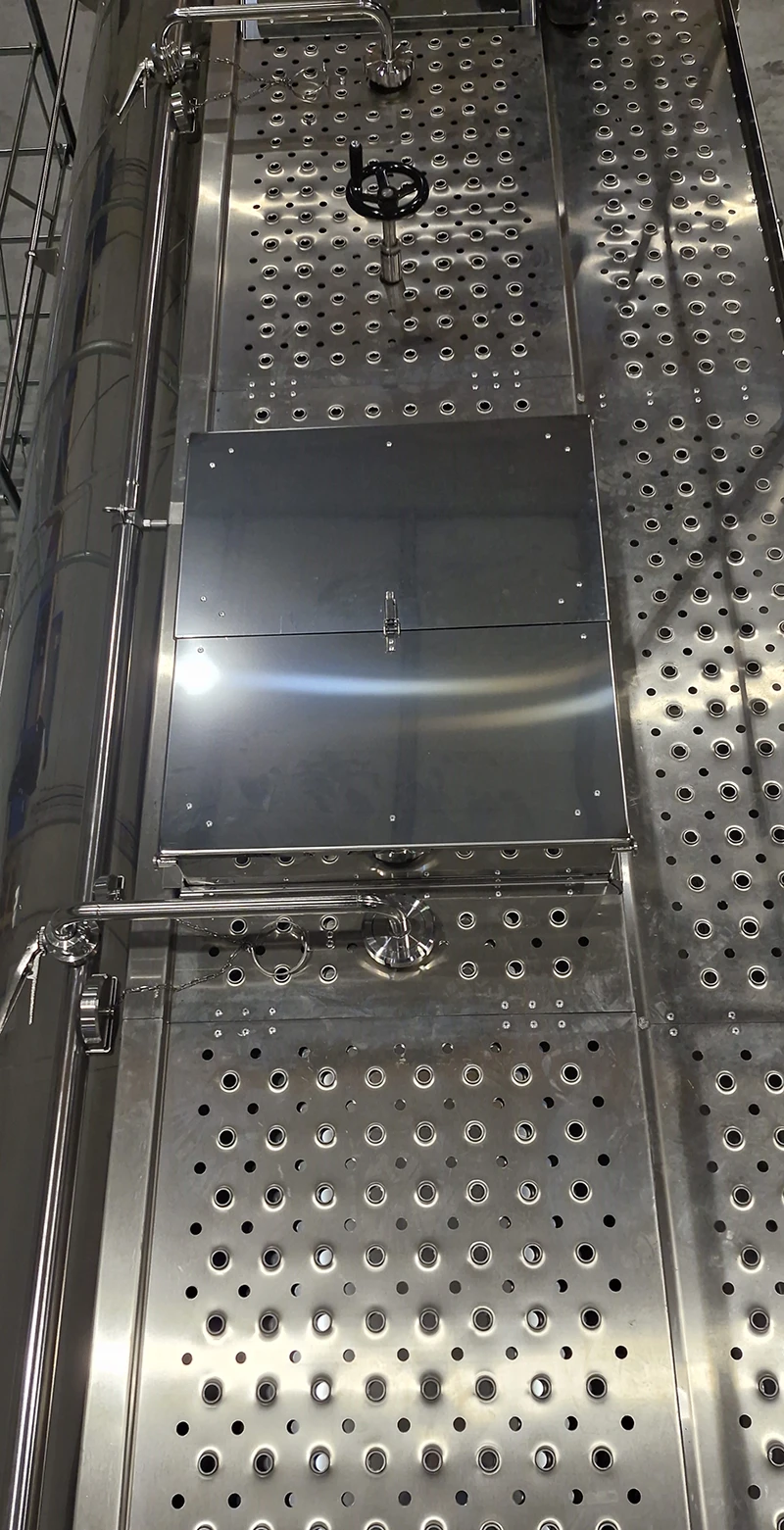

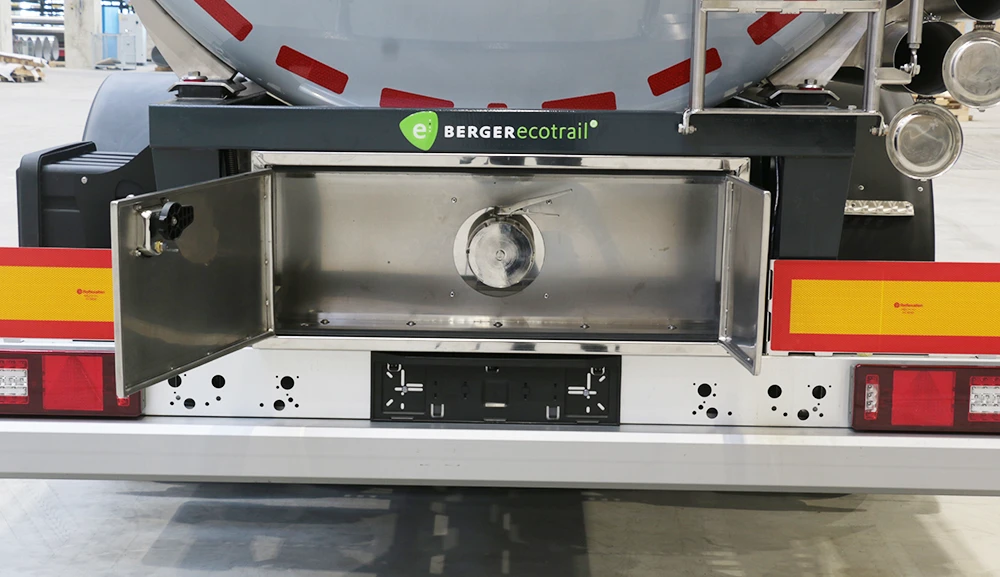

Hatches: DN 500 mm insulated manholes, available with 1 or 4 closures, including vent valve, stainless steel containment box, and closing doors.
External Cladding Options: Tank ends (bottoms) made of fiberglass with a gelcoat finish. Tank body cladding available in either polished stainless steel or fiberglass with gelcoat.

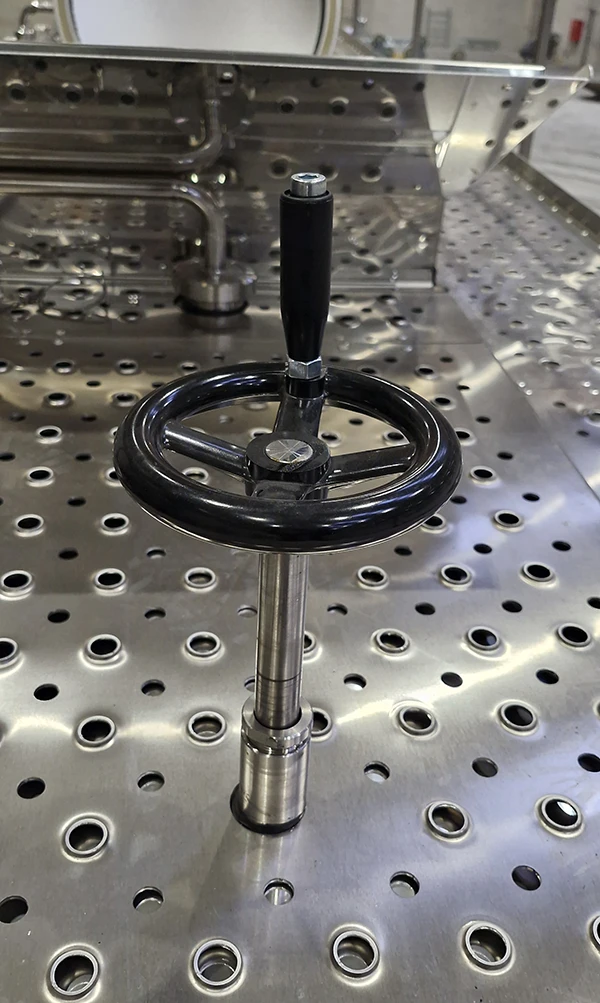

Bottom Valves: Operated from the top or from ground level.

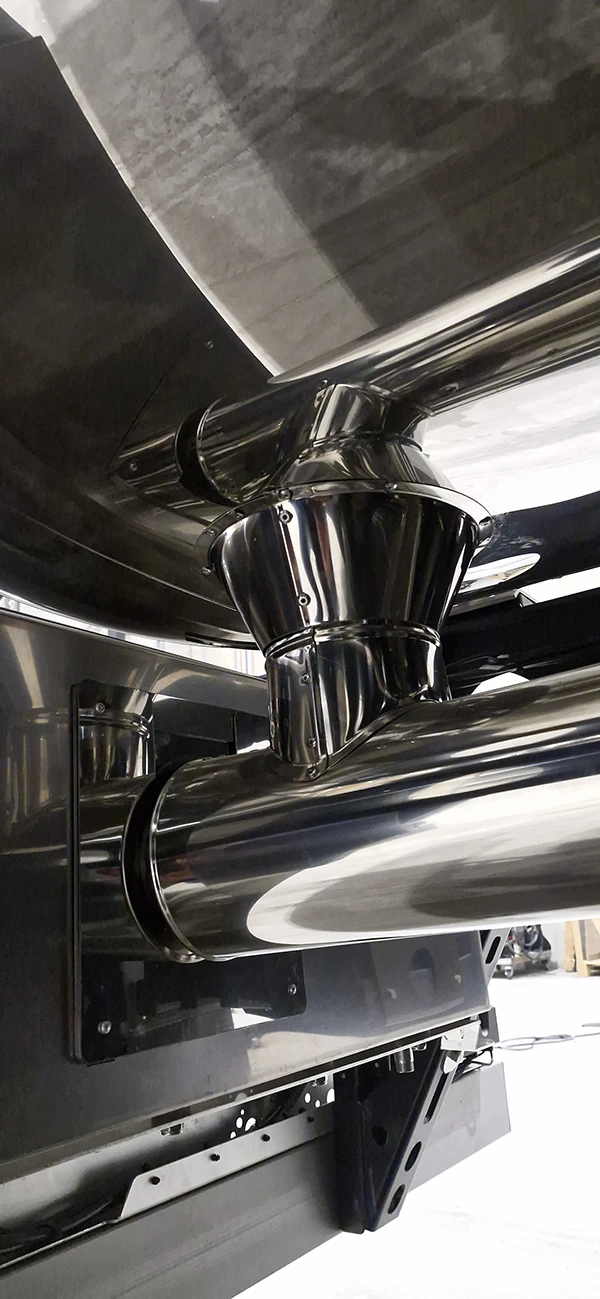

Discharge Line: DN 100 insulated pipeline, available in single or separate configurations, with rear and/or side outlets.

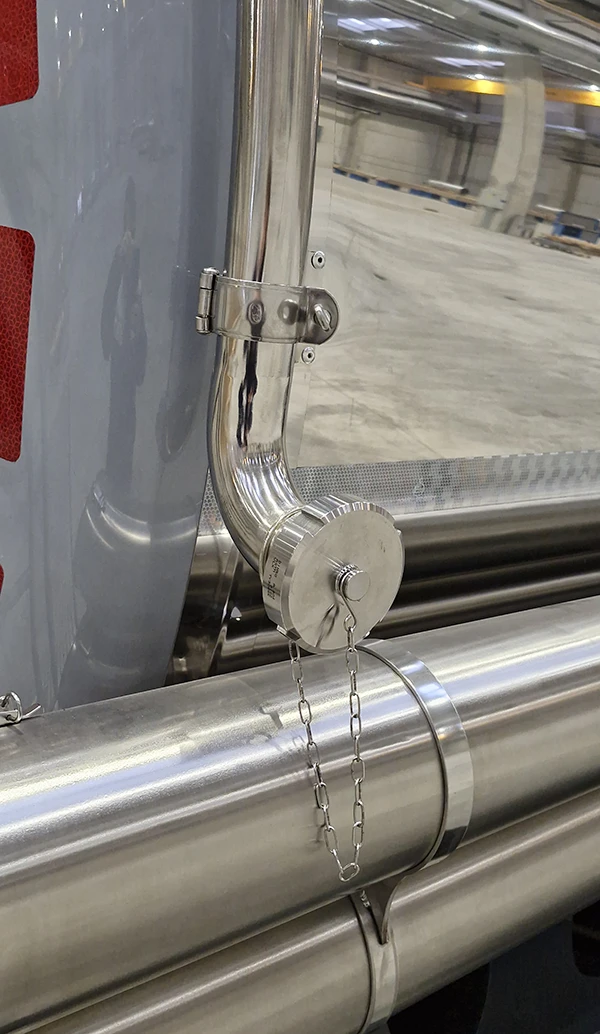

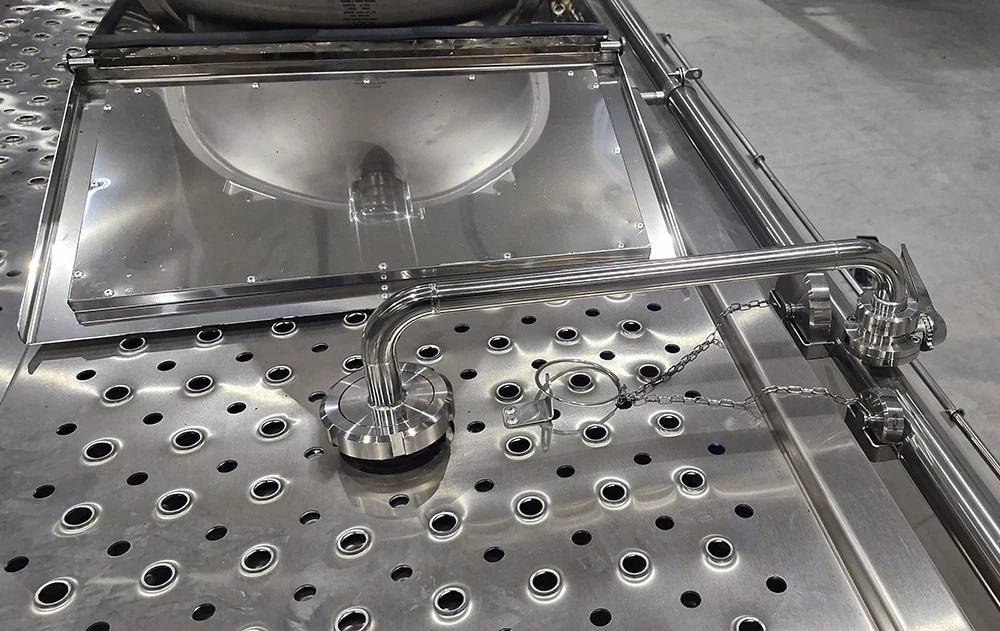

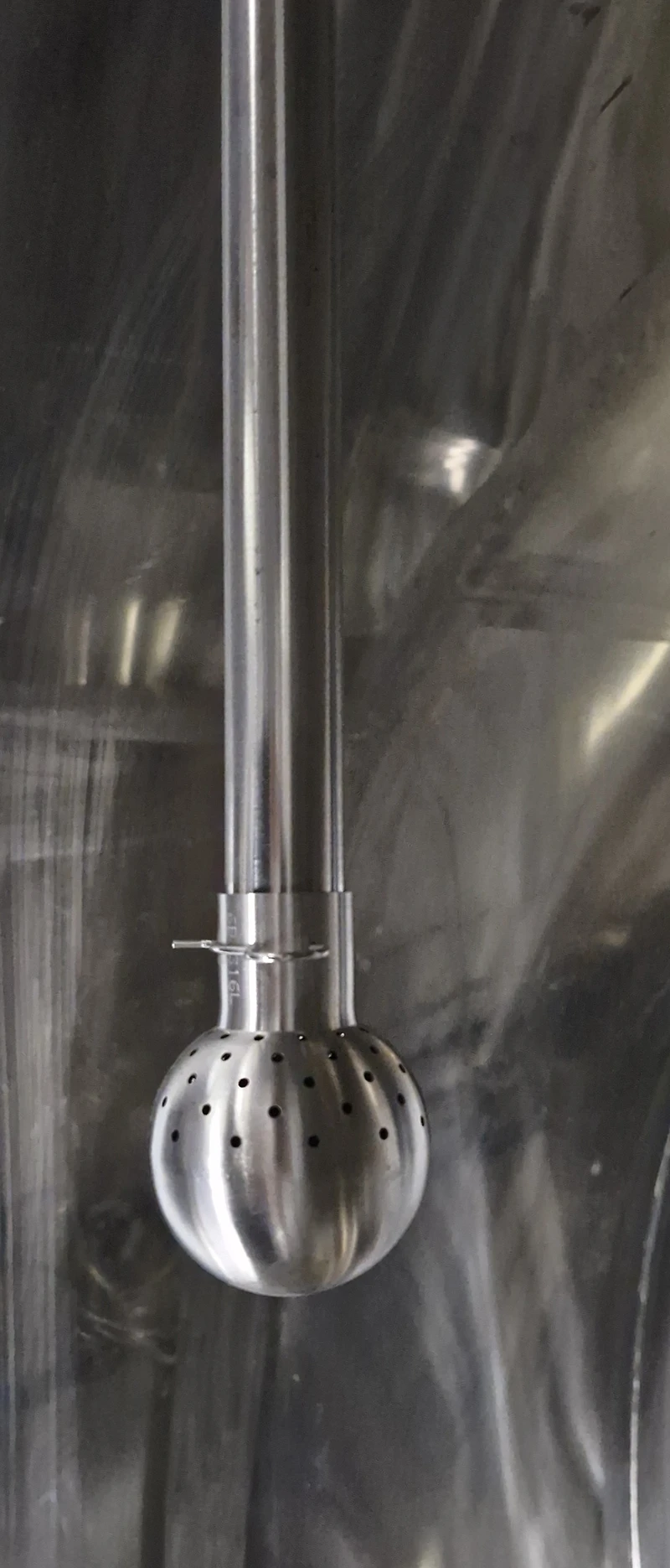

CIP Cleaning System: Integrated washing system with 5 or 6 spray heads. Each spray head includes a shut-off valve.
Heating Preparation: Equipped with heating channels along the tank.

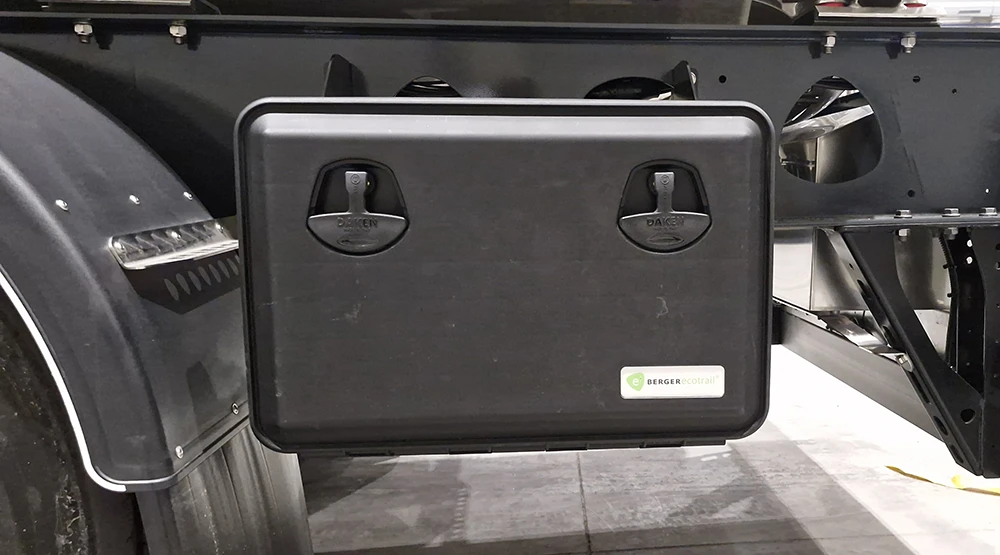

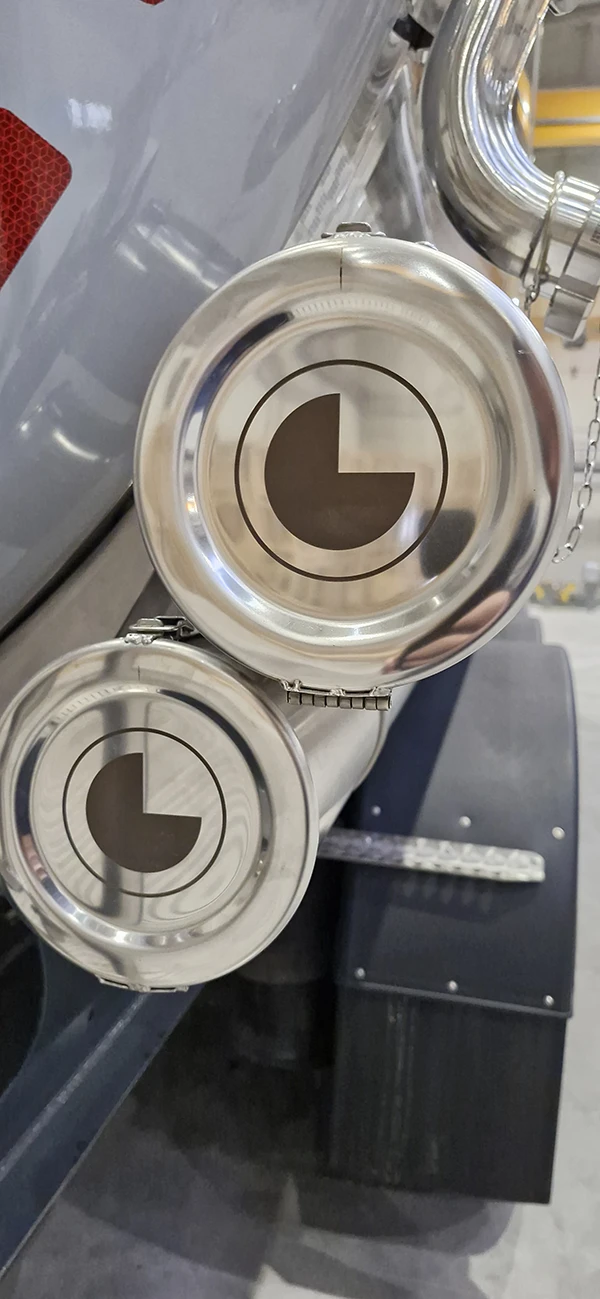

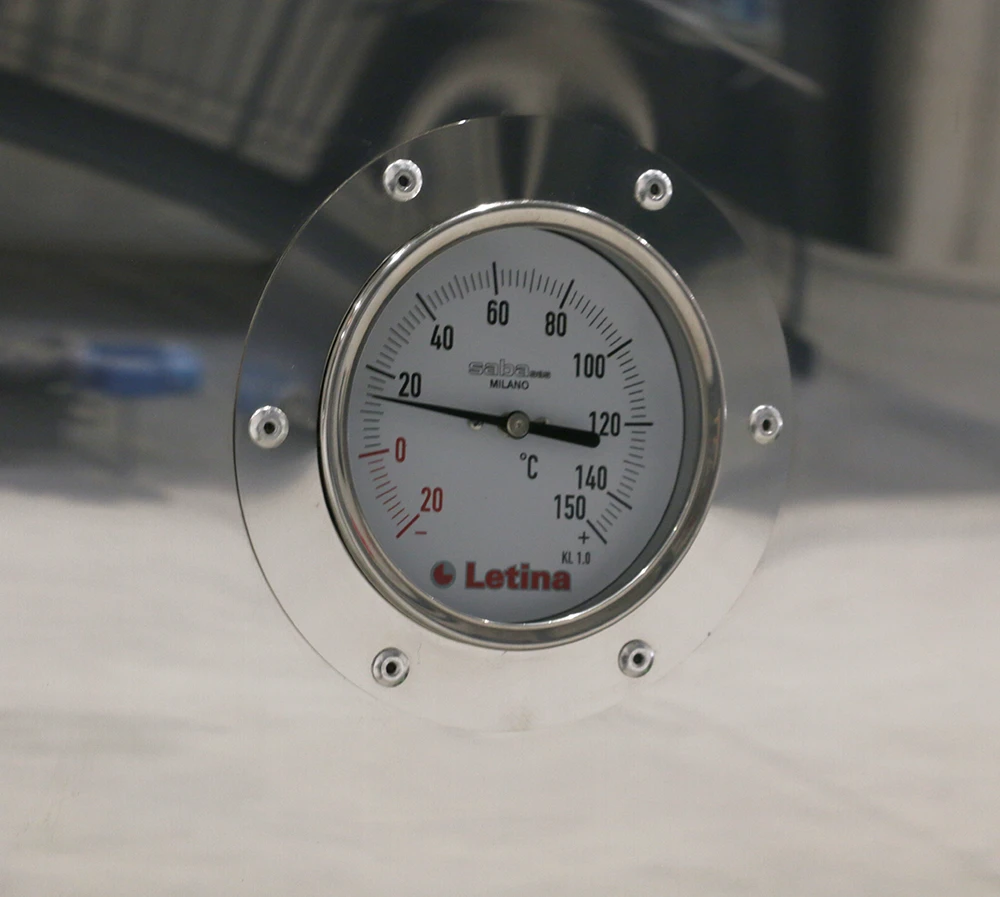

General Features: Anti-slip catwalk in aluminum alloy or stainless steel, folding handrail in stainless steel, rear and/or front ladder, thermometers, hose protection barrier, hose storage compartment with rear door.

Chassis:

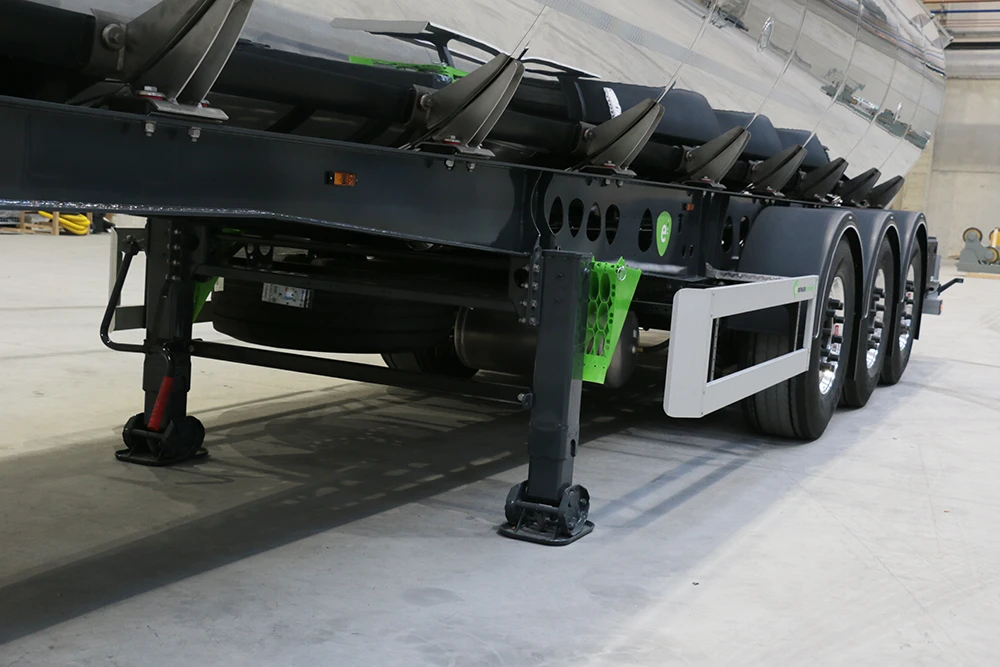

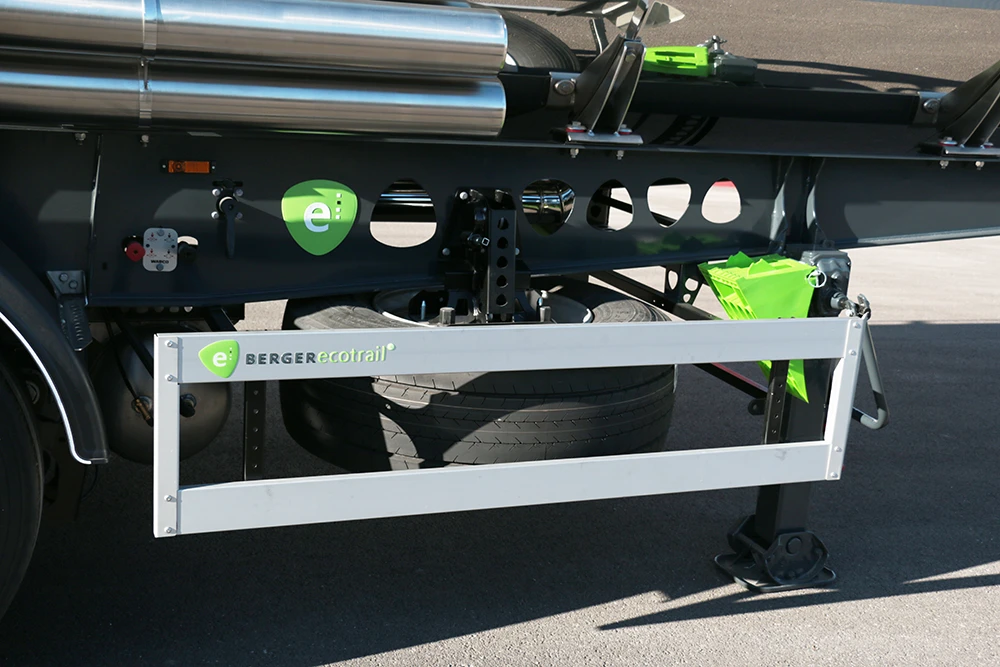

Semi-trailer: Berger Ecotrail - high-quality, strong, and lightweight chassis.
Construction: Welded frame construction made of fine-grained steel S700, galvanized.
Height coupling fifth wheel: 1,150 mm.
Lifts: Landing gear 2x12 to, with thrust compensation.

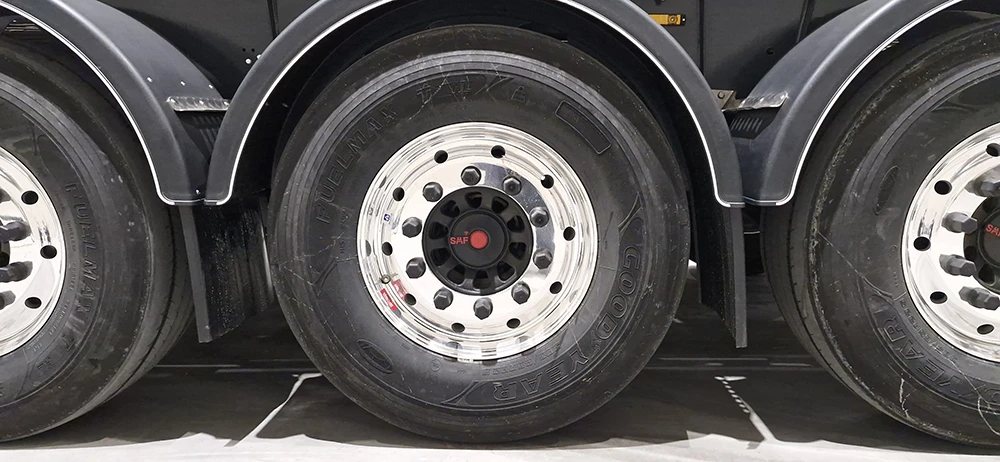

Suspension: Air suspension, TPMS.
Axles: SAF-axles, ET 120, Integral disc brake D=430 mm.
Rims: Aluminum alloy - Alcoa LvL-ONE / option steel Rims.
Electrical system: Electrical system conforming to ADR regulations equipped with ECU control unit.
Options: First lifting axle, first and third lifting axle, third self-steering axle.
Painting: Complete chassis in a common RAL - color upon customer request.

Engineer Your Solution With Us

From high-viscosity mixing to sterile dairy storage, we adapt our engineering to fit your specific process flow and facility footprint.
