The Wineficator Winematic is a specialized horizontal fermenter designed for the precise maceration of white wines, red wine vinification, and spirits production. Its horizontal geometry maximizes the contact area between the juice and the pomace cap, ensuring a more efficient and uniform extraction of color and aromatics.
At the core of the system is a high-torque geared motor driving a full-length anchor agitator. Controlled by a frequency inverter, the motor allows for adjustable, bi-directional rotation from 0 to 5 rpm. This ultra-slow, “low-shear” movement protects the fruit from mechanical damage and prevents the extraction of bitter seed tannins. The same agitator system is engineered to provide automatic pomace discharge, while the vertical dimpled jackets ensure reliable temperature control even at partial fill levels.
Tank Options
- Wheels
- Stand for Forklift Transport
- PU Foam Insulation
- Green Line Stainless Steel
Basic Equipment
• Control Panel (touchscreen) – Automatic Cooling, Heating and Mixing Control
• Automatic Pomace Discharge
• Manhole Cover – 2x Round Ø400 mm
• Manway Door
• Rectangular (type 165)
• Rectangular (type Z175)
• Legs – Adjustable Height and Tilt
• Cooling Jacket (1 m2/1000 L)
• Bottom-mounted Electrical Heater
• Heating Pump
• Thermometer (analog)
• Thermowell (with PG9 fitting)
• Sample Tap (DN15)
• Partial Discharge – Ball Valve (DN32 DIN)
• Total Discharge – Ball Valve (DN65 DIN)
• 2x Vent Valve – DN50 (PVC)
• Solenoid Valve
• Type Plate – With Note Card
• Ladder Rack
• Welding – Brushed Finish
Additional Equipment
• HELI Rotating Sprinkler
• Insulation – Polyurethane Foam Layer (60 mm)
• Manhole Cover – Custom Sizes
• Ball or Butterfly (Clamp, Garolla, WG, Macon, GAS, etc.)
• Stainless Steel Caps (on all valves and fittings)
• Inert Gas Fitting
• Level Indicator
• Ø16 mm Acrylic Tube (scaled, open)
• Ø24 mm Acrylic Tube (scaled, closed)
• Mesh Screen
• Welding – Brushed and Polished (Ra<0.8 µm)• Other additional equipment available per customer request

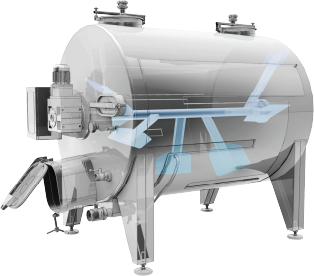

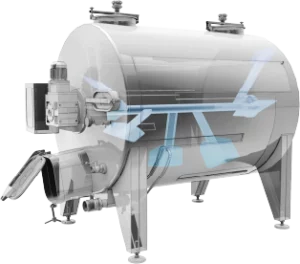

3D
| Type | Volume | Ø (mm) | L1 (mm) | L (mm) | H (mm) | Nr. of blades |
|---|---|---|---|---|---|---|
| VIN3200A14 | 3.200 lit | 1.403 | 2.621 | 2.000 | 2.000 | 7 |
| VIN4000A14 | 4.000 lit | 3.121 | 2.500 | 2.000 | 8 | |
| VIN4100A16 | 4.100 lit | 1.594 | 2.635 | 2.000 | 2.300 | 7 |
| VIN5100A16 | 5.100 lit | 3.135 | 2.500 | 2.300 | 8 | |
| VIN5000A18 | 5.000 lit | 1.753 | 2.646 | 2.000 | 2.450 | 7 |
| VIN6200A18 | 6.200 lit | 3.146 | 2.500 | 2.450 | 8 | |
| VIN7400A18 | 7.400 lit | 3.646 | 3.000 | 2.450 | 10 | |
| VIN7500A19 | 7.500 lit | 1.912 | 3.157 | 2.500 | 2.700 | 8 |
| VIN8900A19 | 8.900 lit | 3.657 | 3.000 | 2.700 | 10 | |
| VIN10500A21 | 10.500 lit | 2.072 | 3.680 | 3.000 | 2.800 | 10 |
| VIN13800A21 | 13.800 lit | 4.680 | 4.000 | 2.800 | 14 | |
| VIN12200A22 | 12.200 lit | 2.231 | 3.680 | 3.000 | 3.000 | 10 |
| VIN16100A22 | 16.100 lit | 4.680 | 4.000 | 3.000 | 14 | |
| VIN15400A25 | 15.400 lit | 2.502 | 3.699 | 3.000 | 3.300 | 9 |
| VIN20300A25 | 20.300 lit | 4.699 | 4.000 | 3.300 | 10 | |
| VIN25000A25 | 25.000 lit | 5.850 | 5.000 | 3.300 | 14 | |
| VIN30000A25 | 30.000 lit | 6.850 | 6.000 | 3.300 | 16 |
Other tank sizes available per client request
Can't Find the Ideal Tank?
Talk to one of our engineers and describe your requirements. We will design a unique solution perfect for your processing needs.
Frequently Asked Questions
Why is the horizontal design better for white wine maceration?
Horizontal tanks create a much thinner pomace cap with a larger surface area. This allows for faster “cold soaking” and more efficient extraction of delicate floral and fruit aromas, which is a major advantage for premium white wine production.
What is the benefit of the 0–5 rpm speed range?
Most mechanical stirrers move too fast, which can bruise the skins and break the seeds. By using a frequency inverter to drop the speed to just 1 or 2 rpm, you achieve a “gentle-hand” mixing effect that preserves the structural integrity of the grapes.
Does the automatic discharge work for heavy spirits mashes?
Yes. The high-torque geared motor is built to move dense solids. When set to discharge mode, the anchor agitator acts as a sweep, pushing the spent skins or grain mash toward the outlet for a fast, “no-shovel” clean-out.
