Storage and Fermentation Tank
Storage and Fermentation Tank

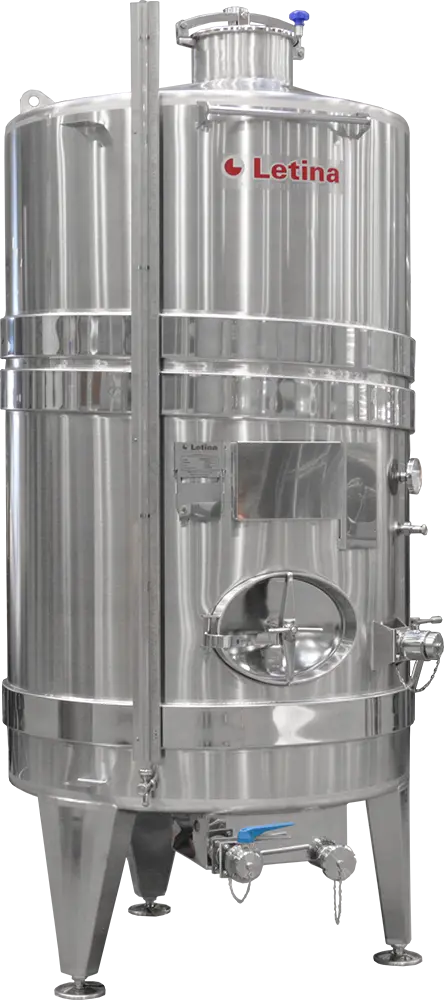

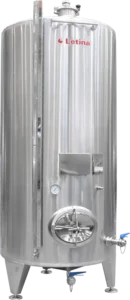

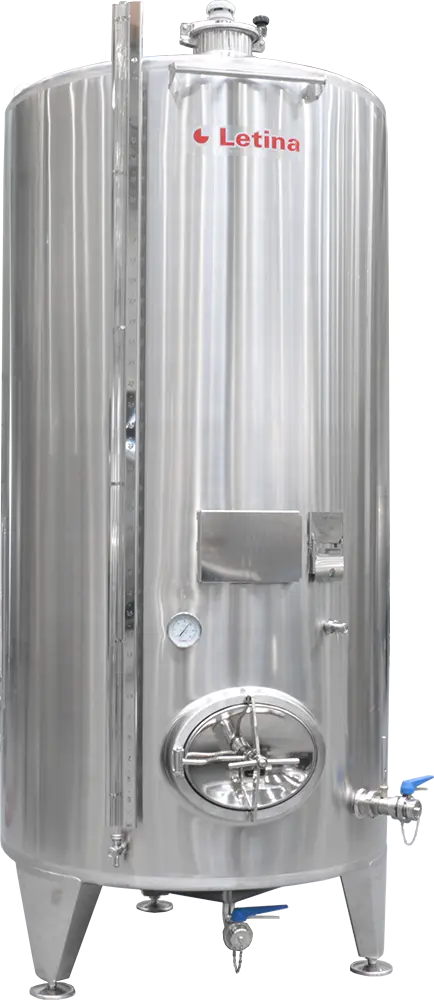

This stainless steel storage tank is one of the oldest models in Letina’s lineup. Tried and tested throughout the years, it has proven its versatility and value time and time again.
Thanks to constant design improvements, the closed tank got better over the years – just like the wine it’s designed to contain.
Whether you want a simple storage tank, a fermentation tank, something to age your product in or even a mixing vessel – this closed top tank can do it all.

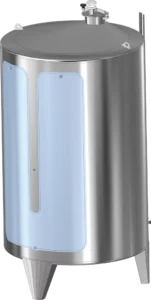

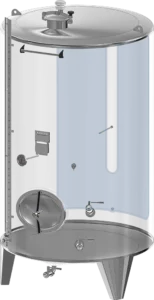

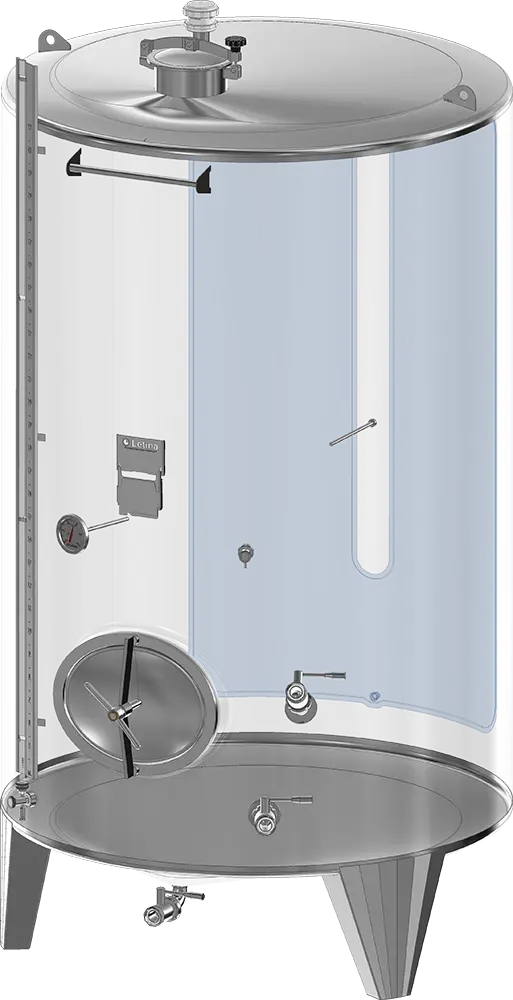

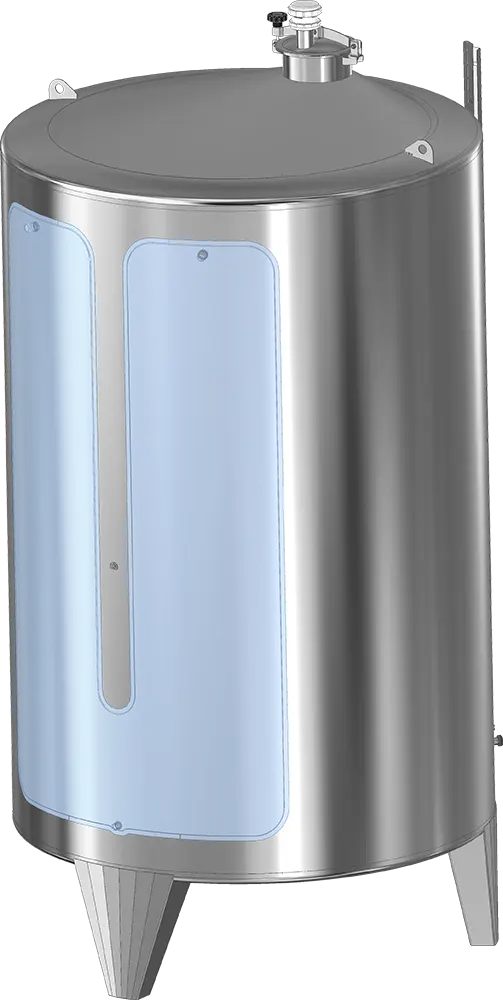

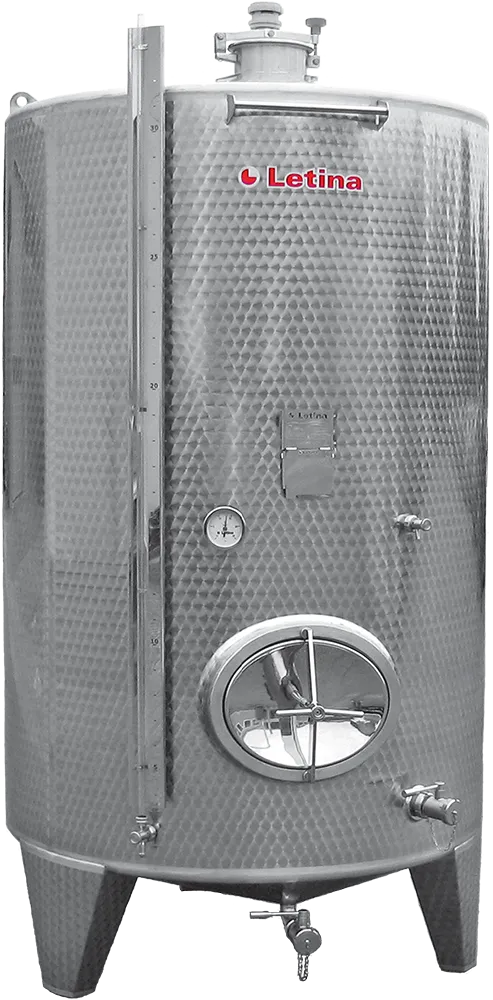

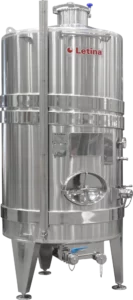

A large, dimpled jacket makes sure the temperature inside the sealed tank is always optimal. Thanks to the vertical construction of the cooling jacket, the stored liquids will be efficiently chilled even if the closed tank is not full to the brim.
Durable, high-quality materials enable the storage tank to stay in pristine condition, even after years of professional usage.
Tank Options
- Wheels
- Stand for Forklift Transport
- PU Foam Insulation
- Green Line Stainless Steel
- Stackable
Basic Equipment
• Manhole Cover – Round Ø200 mm
• Manway Door – Oval (type CL)
• Legs – Standard (Closed)
• Cooling Jacket (0.5 m2/1000 L)
• Thermometer (analog)
• Thermowell (with PG9 fitting)
• Sample Tap (DN15)
• Partial Discharge – Ball valve (DN32 DIN)
• Total Discharge – Ball valve (DN32 DIN)
• Vent Valve – DN50 (PVC)
• Level Indicator – Ø16 mm acrylic tube (scaled, open)
• Type Plate – With note card
• Ladder rack – Coat height 1500 mm onwards
• Welding – Brushed finish
Additional Equipment
• Manhole Cover – Custom
• Manway Door – Custom
• Legs – Adjustable height and tilt
• Cooling/Heating Jacket (>0.5 m2/1000 L)
• Cooling/Heating Plate (0.4 m2/1000 L)
• Thermoregulator (digital)
• Solenoid or electromotor valve
• Ball or butterfly (Clamp, Garolla, WG, Macon, GAS, etc.)
• Stainless Steel Caps (on all valves and fittings)
• Inclined stirrer fitting
• Inert gas fitting
• Level Indicator – Ø24 mm acrylic tube (scaled, closed)
• Decanter
• Welding – Brushed and polished (Ra<0.8 µm)
• Other additional equipment available per customer request
3D

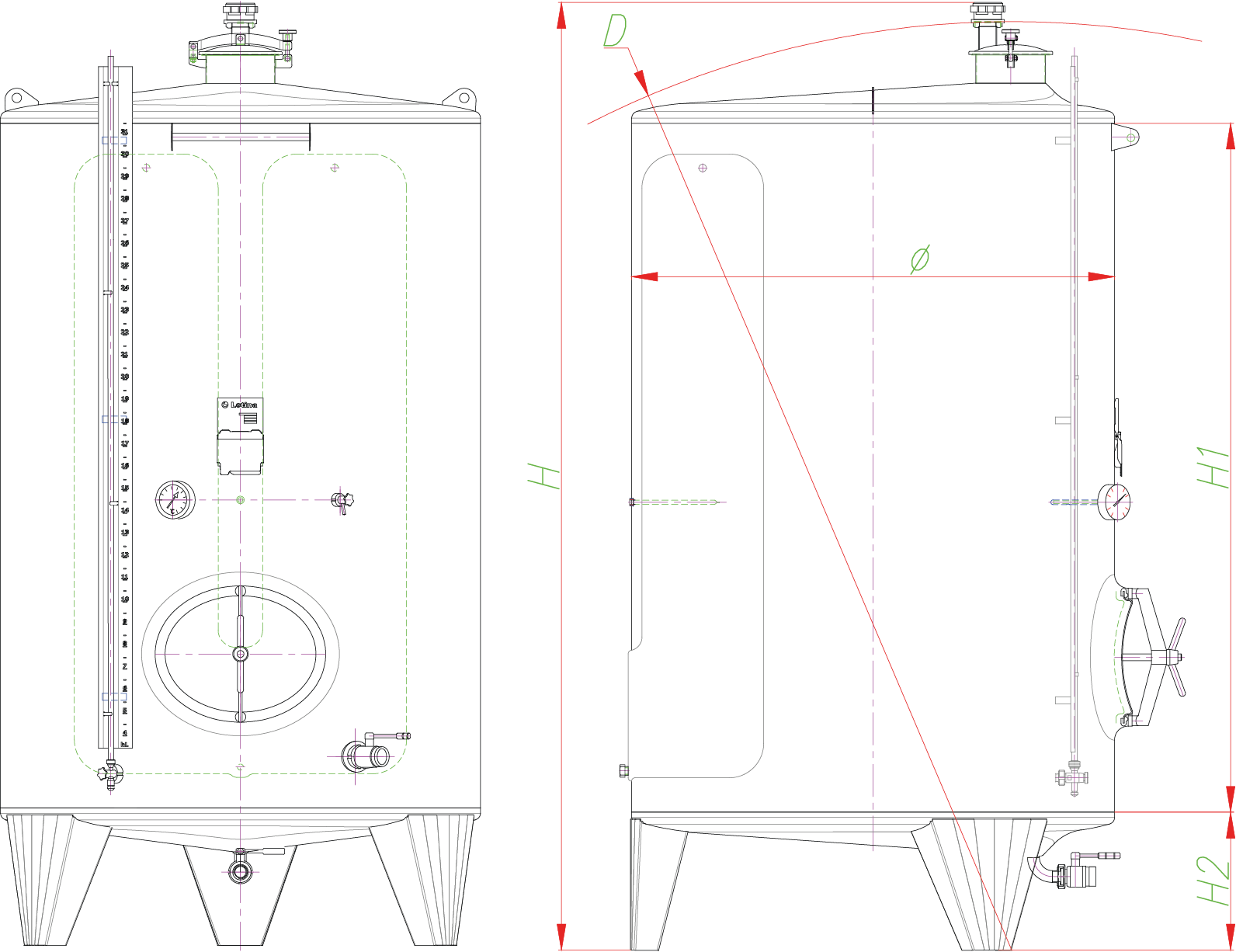

| Type | Volume | Ø (mm) | H (mm) | H1 (mm) | H2 (mm) | D (mm) | Bottom/top |
|---|---|---|---|---|---|---|---|
| Z500A8 | 500 lit | 797 | 1.611 | 1.000 | 300 | 1.560 | B1/T1 |
| Z600A8 | 600 lit | 1.861 | 1.250 | 300 | 1.810 | B1/T1 | |
| Z750A8 | 750 lit | 2.111 | 1.500 | 300 | 2.060 | B1/T1 | |
| Z1000A8 | 1.000 lit | 2.611 | 2.000 | 300 | 2.560 | B1/T1 | |
| Z1250A8 | 1.250 lit | 3.111 | 2.500 | 300 | 3.060 | B1/T1 | |
| Z1500A8 | 1.500 lit | 3.611 | 3.000 | 300 | 3.560 | B1/T1 | |
| Z750A10 | 750 lit | 956 | 1.622 | 1.000 | 300 | 1.570 | B1/T1 |
| Z900A10 | 900 lit | 1.872 | 1.250 | 300 | 1.820 | B1/T1 | |
| Z1040A10 | 1.040 lit | 2.022 | 1.400 | 300 | 1.970 | B1/T1 | |
| Z1100A10 | 1.100 lit | 2.122 | 1.500 | 300 | 2.070 | B1/T1 | |
| Z1450A10 | 1.450 lit | 2.622 | 2.000 | 300 | 2.570 | B1/T1 | |
| Z1800A10 | 1.800 lit | 3.122 | 2.500 | 300 | 3.070 | B1/T1 | |
| Z2150A10 | 2.150 lit | 3.622 | 3.000 | 300 | 3.570 | B1/T1 | |
| Z1250A11 | 1.250 lit | 1.116 | 1.884 | 1.250 | 300 | 1.830 | B1/T1 |
| Z1500A11 | 1.500 lit | 2.134 | 1.500 | 300 | 2.080 | B1/T1 | |
| Z2000A11 | 2.000 lit | 2.634 | 2.000 | 300 | 2.580 | B1/T1 | |
| Z2450A11 | 2.450 lit | 3.134 | 2.500 | 300 | 3.080 | B1/T1 | |
| Z2950A11 | 2.950 lit | 3.634 | 3.000 | 300 | 3.580 | B1/T1 | |
| Z3950A11 | 3.950 lit | 4.634 | 4.000 | 300 | 4.580 | B1/T1 | |
| Z2000A13 | 2.000 lit | 1.275 | 2.245 | 1.500 | 400 | 2.191 | B1/T1 |
| Z2600A13 | 2.600 lit | 2.745 | 2.000 | 400 | 2.691 | B1/T1 | |
| Z3250A13 | 3.250 lit | 3.245 | 2.500 | 400 | 3.190 | B1/T1 | |
| Z3900A13 | 3.900 lit | 3.745 | 3.000 | 400 | 3.690 | B1/T1 | |
| Z5150A13 | 5.150 lit | 4.745 | 4.000 | 400 | 4.690 | B1/T1 | |
| Z2400A14 | 2.400 lit | 1.402 | 2.250 | 1.500 | 400 | 2.221 | B1/T1 |
| Z3200A14 | 3.200 lit | 2.750 | 2.000 | 400 | 2.696 | B1/T1 | |
| Z3950A14 | 3.950 lit | 3.250 | 2.500 | 400 | 3.196 | B1/T1 | |
| Z4700A14 | 4.700 lit | 3.750 | 3.000 | 400 | 3.695 | B1/T1 | |
| Z6250A14 | 6.250 lit | 4.750 | 4.000 | 400 | 4.695 | B1/T1 | |
| Z4150A16 | 4.150 lit | 1.593 | 2.764 | 2.000 | 400 | 2.730 | B1/T1 |
| Z5100A16 | 5.100 lit | 3.264 | 2.500 | 400 | 3.209 | B1/T1 | |
| Z6100A16 | 6.100 lit | 3.764 | 3.000 | 400 | 3.708 | B1/T1 | |
| Z8100A16 | 8.100 lit | 4.764 | 4.000 | 400 | 4.708 | B1/T1 | |
| Z10100A16 | 10.100 lit | 5.764 | 5.000 | 400 | 5.708 | B1/T1 | |
| Z5000A18 | 5.000 lit | 1.752 | 2.775 | 2.000 | 400 | 2.786 | B1/T1 |
| Z6200A18 | 6.200 lit | 3.275 | 2.500 | 400 | 3.232 | B1/T1 | |
| Z7450A18 | 7.450 lit | 3.775 | 3.000 | 400 | 3.719 | B1/T1 | |
| Z9850A18 | 9.850 lit | 4.775 | 4.000 | 400 | 4.719 | B1/T1 | |
| Z12200A18 | 12.200 lit | 5.775 | 5.000 | 400 | 5.719 | B1/T1 | |
| Z6000A19 | 6.000 lit | 1.911 | 2.938 | 2.000 | 500 | 2.922 | B2/T2 |
| Z7450A19 | 7.450 lit | 3.438 | 2.500 | 500 | 3.382 | B2/T2 | |
| Z8850A19 | 8.850 lit | 3.938 | 3.000 | 500 | 3.881 | B2/T2 | |
| Z11700A19 | 11.700 lit | 4.938 | 4.000 | 500 | 4.881 | B2/T2 | |
| Z14600A19 | 14.600 lit | 5.938 | 5.000 | 500 | 5.881 | B2/T2 | |
| Z8750A21 | 8.750 lit | 2.071 | 3.455 | 2.500 | 500 | 3.533 | B3/T2 |
| Z10400A21 | 10.400 lit | 3.955 | 3.000 | 500 | 3.969 | B3/T2 | |
| Z13800A21 | 13.800 lit | 4.955 | 4.000 | 500 | 4.905 | B3/T2 | |
| Z17100A21 | 17.100 lit | 5.955 | 5.000 | 500 | 5.903 | B3/T2 | |
| Z20500A21 | 20.500 lit | 6.955 | 6.000 | 500 | 6.903 | B3/T2 | |
| Z10200A22 | 10.200 lit | 2.230 | 3.473 | 2.500 | 500 | 3.591 | B3/T2 |
| Z12200A22 | 12.200 lit | 3.973 | 3.000 | 500 | 4.021 | B3/T2 | |
| Z16100A22 | 16.100 lit | 4.973 | 4.000 | 500 | 4.921 | B3/T2 | |
| Z20000A22 | 20.000 lit | 5.973 | 5.000 | 500 | 5.919 | B3/T2 | |
| Z23900A22 | 23.900 lit | 6.973 | 6.000 | 500 | 6.919 | B3/T2 | |
| Z15300A25 | 15.300 lit | 2.501 | 4.002 | 3.000 | 500 | 4.143 | B3/T2 |
| Z20200A25 | 20.200 lit | 5.002 | 4.000 | 500 | 5.022 | B3/T2 | |
| Z25100A25 | 25.100 lit | 6.002 | 5.000 | 500 | 5.955 | B3/T2 | |
| Z30000A25 | 30.000 lit | 7.002 | 6.000 | 500 | 6.953 | B3/T2 | |
| Z34900A25 | 34.900 lit | 8.002 | 7.000 | 500 | 7.952 | B3/T2 | |
| Z39800A25 | 39.800 lit | 9.002 | 8.000 | 500 | 8.951 | B3/T2 |
Other tank sizes available per client request
Can't Find the Ideal Tank?
Talk to one of our engineers and describe your requirements. We will design a unique solution perfect for your processing needs.
Frequently Asked Questions
What is a closed tank?
A closed tank, also referred to as a sealed tank or closed top tank, is any fixed capacity storage vessel. The top of this type of tanks is sealed by welding it to the body, hence the name sealed tank.
What can I store in the closed tank?
The closed tank is a completely sanitary vessel made out of AISI 304 stainless steel. It is suitable as a storage tank for a wide variety of liquids and foodstuffs. Wine, beer, liquor, dairy, confectionery, cosmetics, pharmaceuticals – even corrosive chemicals can be stored in the closed tank with an upgrade to AISI 316L stainless steel.
What can I use the closed tank for?
The closed tank was initially designed for the wine industry and intended as a storage and fermentation vessel. Since then, it received many design upgrades. Now, the closed tank is suitable for storage, fermentation and mixing of any sanitary liquid or powder.
